Panel UR SP Partitioning

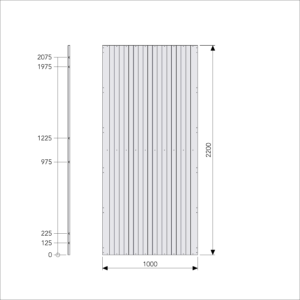

UR SP is a steel sheet partition panel that is ideal when protection from outside view is requested. The profiled steel sheet 0,7 mm is welded to a 19x19 mm frame for added strength. Panels are available in 6 widths, from 200 mm to 1200 mm. The system is fully demountable and relocatable. Panels are supplied powder coated as standard with a grey RAL 7037 finish, however other RAL colours are available upon request.

Variants
Assembly instructions
Downloads
Combine with
Accessories

Variants

Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
36118901	Door UX SP P 1180	1180	Full Steel	30x20
36098301	Door UX SP P 980	980	Full Steel	30x20

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
35020511	Panel UR SP 2200x200	200	Full Steel	19x19
35030511	Panel UR SP 2200x300	300	Full Steel	19x19
35070511	Panel UR SP 2200x700	700	Full Steel	19x19
35080511	Panel UR SP 2200x800	800	Full Steel	19x19
35100511	Panel UR SP 2200x1000	1000	Full Steel	19x19
35120511	Panel UR SP 2200x1200	1200	Full Steel	19x19

Assembly Instructions

Assembly Instruction - Safe Fix System.pdf

Interactive 3D

PDF

Downloads

Name
Product sheet - PANEL UR SP_EN.pdf	Type Product sheets	Download
