Mesh and sheet guarding for robot cells, conveyors and production lines. Built for industrial machinery, not for temporary site, event or perimeter fencing.
of mesh safety systems
no form to fill in
in our Test Centre
What are you guarding?
Thirteen systems in the range. Start from the thing you need to make safe and we will take you to the one built for it.
A robot cell or automated line
A heavy impact or vehicle zone
A conveyor or transfer point
-

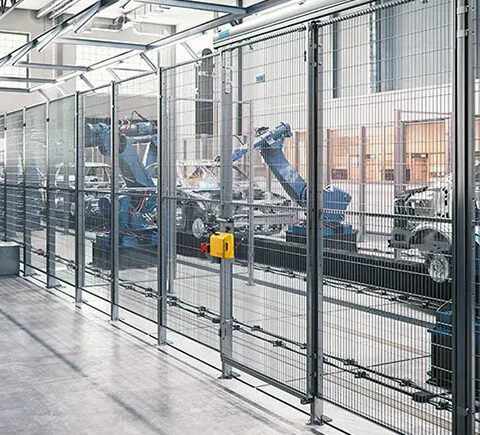

A robot cell or automated line
Fast to install and fast to take apart when the cell moves. Smart Fix, tested to 2,100 J. -

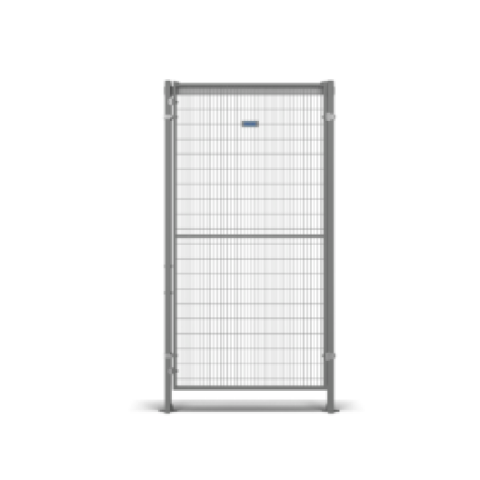

A heavy impact or vehicle zone
Where forklifts and heavy parts are in play. Strong Fix ST30, tested to 6,000 J. -

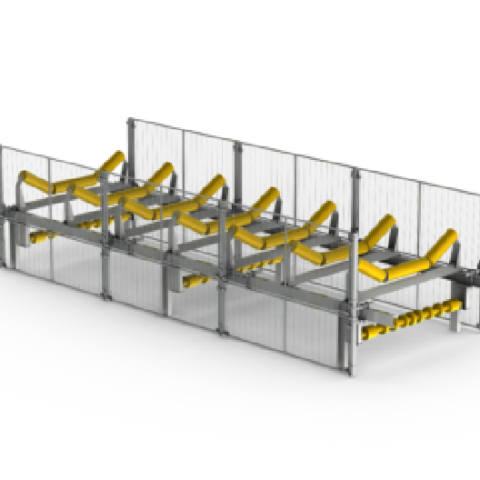

A conveyor or transfer point
Guarding shaped around the run rather than boxed around it. Belt Conveyor Guarding.
A washdown or food line
Getting people in and out
Stopping the machine when a door opens
-

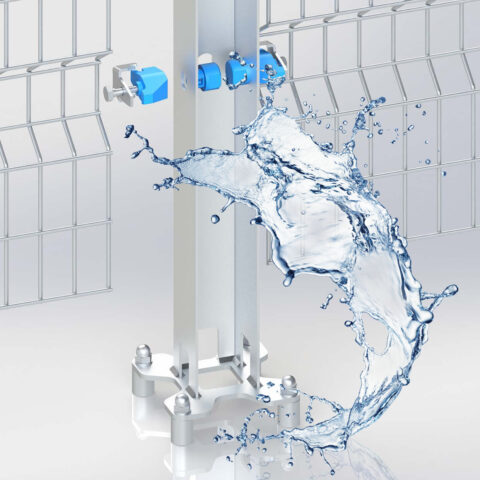

A washdown or food line
Stainless steel for hygiene critical and high pressure cleaning. -

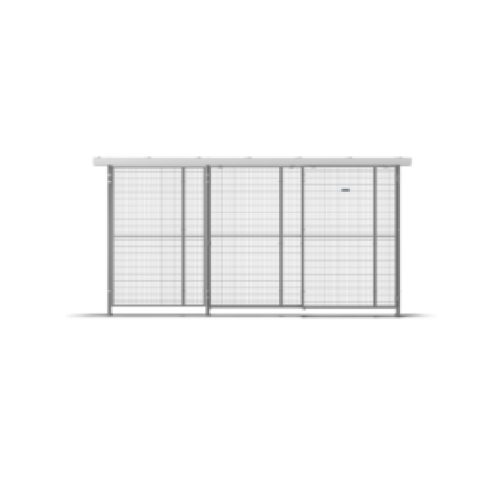

Getting people in and out
Hinged, sliding and lift off access built into the guarding line. -

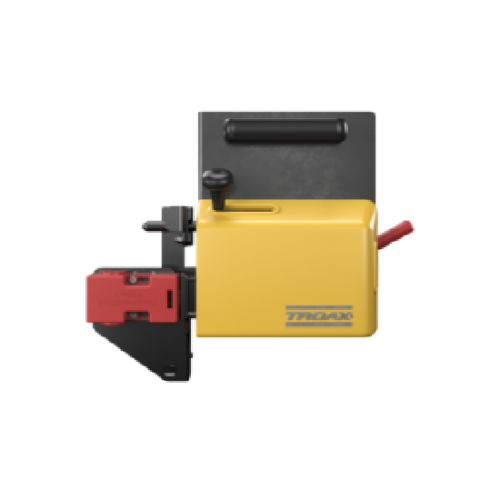

Stopping the machine when a door opens
Safety interlocks and access control tied into the guard. Locks and Switches.
Cells get moved and lines get rebalanced. Troax panels, posts and doors are designed to be taken apart and rebuilt around a changed layout, so a reconfiguration does not mean scrapping the guard. How fast that goes depends on the fixing system, which is what the figures below measure.
Strong Fix ST30: Impact: 6,000 J. Test: 238 kg at 25 km/h
Smart Fic ST20: Impact 2100 J. Test: 134 kg at 20 km/h
Rapid Fix ST20: Impact: 1600 J. Test: 100 kg at 20 km/h
Pendulum tested in the Troax Test Center. The test methods are certified by TÜV Rheinland, an independent institute.
Before you specify
Yes, in most cases. Panels can be fixed to racking uprights or floor mounted and stood independently, depending on the layout and what the racking is rated to carry. Send us your layout and we will confirm the fixing method before you order.
Panels have a 20x100mm mesh aperture to coincide with the machinery directive and safety distances. Panels are 2050mm high. This enables machine guarding to be bult with a 150mm floor gap. We also offer half height panels at 1250mm high with a 150mm floor gap (1400mm overall). We can make panels to any size if required with extended lead time and cost.
We offer both modular and bespoke. Longer lead time for bespoke.
Currently we stock standard colours in the UK. Standard colours stocked in Sweden have a typical lead time 2-3 weeks.
Grey RAL 7037 / Black RAL 9005 for panels and Grey RAL 7037 and Yellow RAL 1018 for posts. Other Swedish standard colours available from the factory on a 2 – 3 week lead time, with all other RAL references available but on request.
We offer an installation service for all of our products. You can also install yourself.

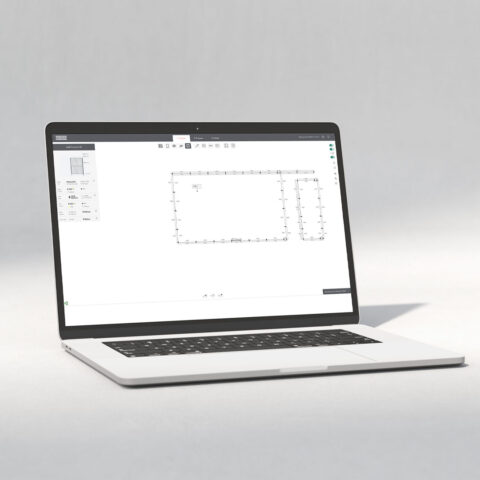

Drop Troax geometry straight into your drawing, or lay the whole guard out in Drawit, the free Troax configurator. No form to fill in first.
Tell us the application
Send us the machine, the layout or the risk assessment and we will come back with a specification and a price.
A drawing or a rough sketch is enough to start, no obligation and no charge for specification. Not ready? Take the CAD files instead
