Panel UR325 Partitioning

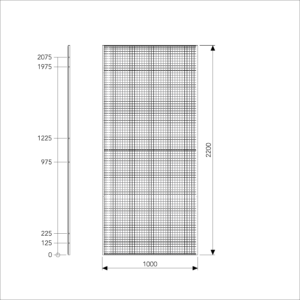

Panel UR 325 is available in 7 widths between 200 mm up to 1500 mm. The mesh panels can be modified on-site to fit any space, providing security where required. UR 325 is the preferred mesh panel for aerosol storage and where small items are being stored. The mesh, constructed from press welded 2.5 mm wires with mesh aperture 25x25 mm, is welded to a 19x19 mm tubular frame for added strength. The system is fully demountable and relocatable. Panels are supplied powder coated as standard with a grey RAL 7037 finish, however other RAL colours are available upon request. Panels can also be supplied hot dip galvanized for external use or in cold storage areas.

Variants
Downloads
Combine with
Accessories

Variants

Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
35020201	Panel UR325 2200x200	200	25x25	19x19
35030201	Panel UR325 2200x300	300	25x25	19x19
35070201	Panel UR325 2200x700	700	25x25	19x19
35080201	Panel UR325 2200x800	800	25x25	19x19
35100201	Panel UR325 2200x1000	1000	25x25	19x19
35120201	Panel UR325 2200x1200	1200	25x25	19x19
35150201	Panel UR325 2200x1500	1500	25x25	19x19

Downloads

Name
Product Sheet - Panel UR325_EN.pdf	Type Product sheets	Download
