Roof Beam

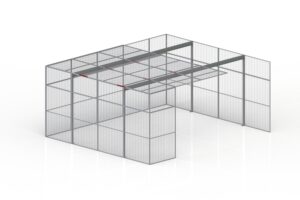

Roof beams are mainly used to complete the roof construction for big cages and server rooms, but they can also be used in the art storage system. The roof beams are z-shaped, and the design is adapted so they perfectly sit on the 60x40 posts and provides support for the roof panels. They can be used for both mesh panels and steel sheet panels. The maximum free-hanging roof size without inner partitioning walls is 7000x7000 mm. Available standard Z-beams are 1500 mm, 2400 mm, 3500 mm. The shorter 1500 mm length is also used as a splice for the longer lengths. The finish is pre-galvanized.
Combine with
Panel UR SP Partitioning
The UR SP steel sheet panel is perfect for scenarios where protection from outside view is required.
Panel UX450 Partitioning
The UX450 is our original and strongest panel, ideal for use in warehouse partition walls.
Panel UR325 Partitioning
The UR325 panel is specially designed for aerosol storage or applications where smaller items are stored.
Panel UR350 Partitioning
The UR350 panel is a reliable option for steel partition walls, offering durability and flexibility.
Post 60x40 WP
The Post 60x40 is the backbone of our steel partition wall systems, compatible with all panel types and fixing systems.
