Door UX500 - Troax

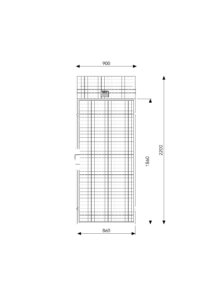

The Troax Safe UX500 is a door for padlock, designed to be used together with the mesh panel UX 550 and is suitable for storage areas in need of the highest level of protection and is part of a system with specially adapted installation fittings, like corner and wall profiles. The system has been tested and approved by the Swedish Theft Prevention Association (SSF) and is used in areas which are particularly exposed to break-in attempts. The door leaf has a 30x20 mm steel tube frame and two horizontal middle tubes to create strength and stability. Together with the 50x50 mesh aperture and the 5 mm wire thickness gives this a considerable impression of safety and can also live up to it. The door is 900 mm wide and supplied pre-assembled, ready for installation.

Variants
Downloads
Combine with

Variants

Height 2200 mm

Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
36095001	Door UX500 P SSF 900 R	900	50x50	30x20
36095011	Door UX500 P SSF 900 L	900	50x50	30x20

Downloads

Name
Product sheet - DOOR UX500_EN.pdf	Type Product sheets	Download
Certificate Troax Safe UX500.pdf	Type Documents	Download

Combine with

Spare parts securing plates

Troax can provide you with spare parts if an accident has occurred and the need for new securing plates is urgent.

Panel UX450

The UX 450 mesh panel is the base of Troax Medium security cages.

Panel UX550

Panel UX 550 is our strongest panel and is used in the Troax Safe security cage system.

Panel UR350

The UR 350 panel is our most used mesh panel and is the backbone of Troax Classic security cages.

Door closer

The Door closer ensures that the security cage door always closes behind you for greater peace of mind.

Door system Kit silence

Troax has a family of silencers that will reduce the unpleasant sound of metal against metal or metal against concrete within the steel cage.

Store room numbering

We can supply optional numbering for all doors. If specified and ordered in advance, it can be installed together with the assembly of the storage.
