Hygienic guarding for
food & beverage, pharmaceutical and chemical plants
Daily washdown destroys ordinary guarding. BlueGuard, Troax hygienic stainless-steel machine guarding, is engineered in stainless steel to outlast it, keeping your lines clean, compliant and running.
Stainless steel that thrives where coatings fail
Hygiene-critical plants demand guarding that’s cleaned as hard as the machines it surrounds, day after day, with high-pressure jets and aggressive detergents. It’s a standard painted and powder-coated systems simply can’t meet. BlueGuard can.
Troax, the global leader in mesh-panel perimeter protection, built it from passivated AISI 304L stainless steel, with frameless 4 mm welded-wire panels reinforced by transversal folds. It shrugs off high-pressure jets, takes a 600 joule impact and withstands aggressive detergents for six years of daily cleaning, with no compromise on strength.
Engineered to outperform on every front
Nowhere for bacteria to hide
Passivated AISI 304L and open, inclined surfaces resist corrosion and leave no crevices for residue or bacteria to gather.
Passes the standards auditors check
Designed to EN 1672-2 and EN ISO 14159, built from food-contact-safe materials compliant with FDA 21 CFR 177.1500.
Survives the harshest washdown
ECOLAB-tested against aggressive detergents for 2,000 cleaning cycles, around six years of repeated high-pressure, high-temperature use.

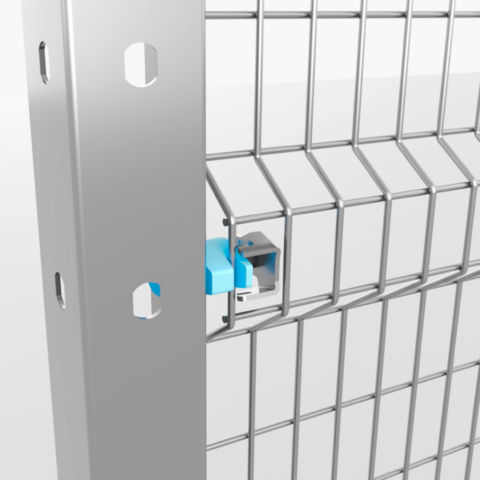

Up and running faster
One universal post covers straight runs, corners and doors, with pre-assembled captive fixings that cut install time and on-site errors.
Reconfigures with your line
Frameless panels adapt to any layout and resize on site without specialist tooling.
Impact-tested to 600 joules
Pendulum-verified to keep personnel guarded in the most demanding production environments.
Common applications
Proven across hygiene-critical industries

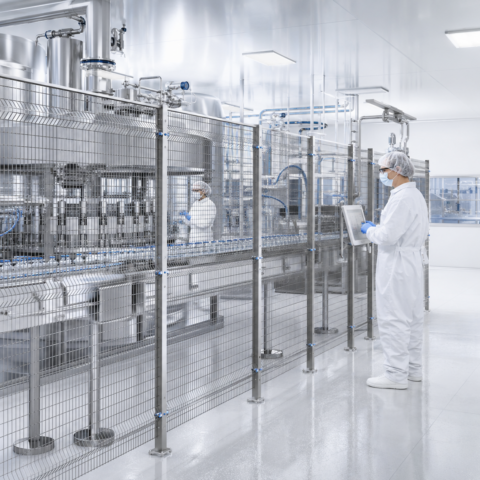

Food and beverage
Guards production and processing lines through constant washdown without corroding or harboring bacteria.

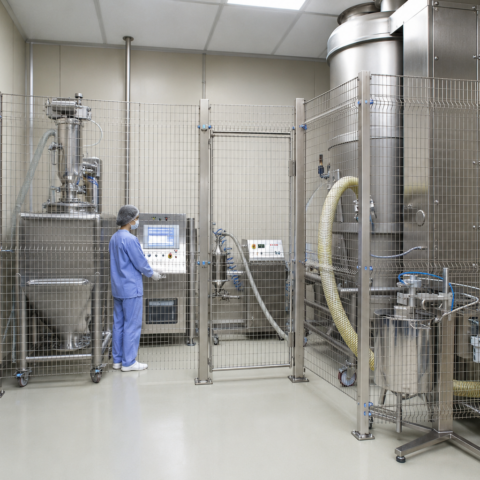

Pharmaceutical
Holds up where cleanability and material compliance are non-negotiable.

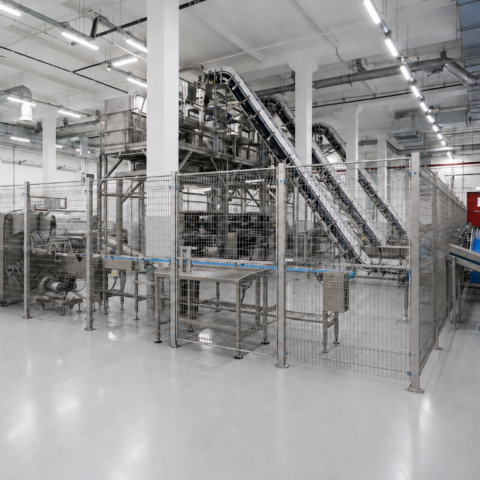

Chemical
Resists corrosive, aggressive conditions while keeping personnel safely separated from automated processes.
-
Food and beverage
Guards production and processing lines through constant washdown without corroding or harboring bacteria. -
Pharmaceutical
Holds up where cleanability and material compliance are non-negotiable. -
Chemical
Resists corrosive, aggressive conditions while keeping personnel safely separated from automated processes.

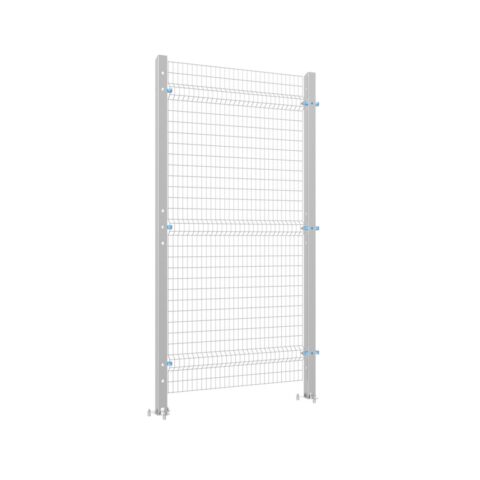

Wall panels
Frameless 4 mm welded-wire panels in passivated AISI 304L, strengthened by transversal folds for stability and easy on-site adjustment.

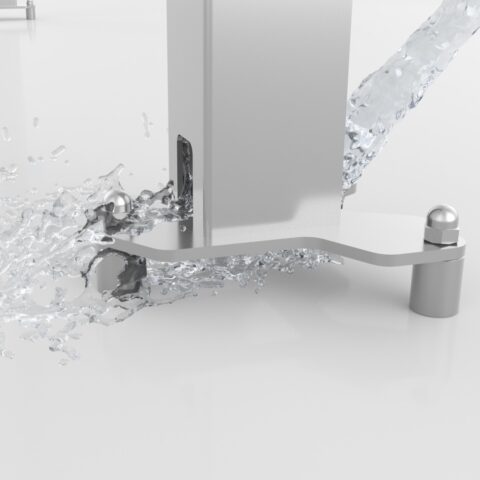

Posts and fixings
A universal U-shaped stainless post with continuous TIG-welded baseplate, paired with captive techno-polymer and stainless fixings that minimize metal-to-metal contact.

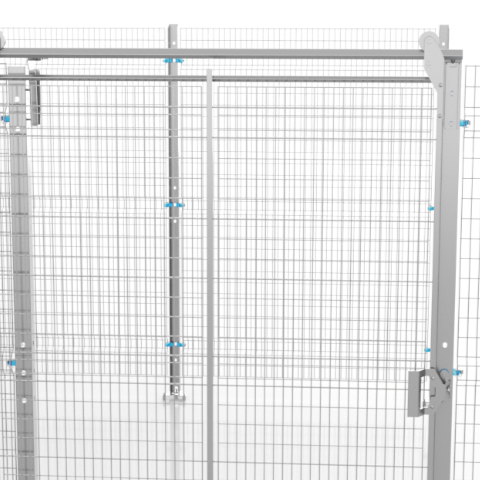

Doors
Hinged and sliding door options with inclined hygienic surfaces, ready for magnetic locks and safety-switch brackets.
-
Wall panels
Frameless 4 mm welded-wire panels in passivated AISI 304L, strengthened by transversal folds for stability and easy on-site adjustment. -
Posts and fixings
A universal U-shaped stainless post with continuous TIG-welded baseplate, paired with captive techno-polymer and stainless fixings that minimize metal-to-metal contact. -
Doors
Hinged and sliding door options with inclined hygienic surfaces, ready for magnetic locks and safety-switch brackets.
Credentials
-Food-contact-safe materials compliant with EC 1935/2004, EU 10/2011, EC 2023/2006 and FDA 21 CFR 177.1500.
-Hygiene Level 1 compliant under EN ISO 14159, designed to EN 1672-2 and the Machinery Directive 2006/42/EC.
-ECOLAB-tested resistance to aggressive detergents and disinfectants across 2,000 wash cycles.
-Optional fully sealed floor anchoring, built in line with EHEDG guidelines to limit cross-contamination.
-Fully recyclable stainless steel, backing Troax’s sustainability commitments.
