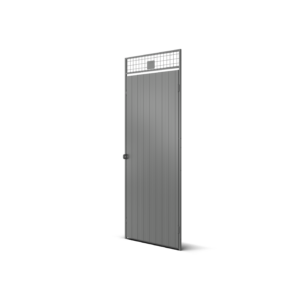

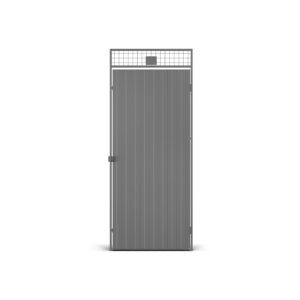

Door UR SP
UR SP steel sheet hinged door provides an alternative to mesh doors for storage areas requiring private security. The door is supplied with a securing plate for padlock. Doors are available in heights from 2200mm and width is 900 mm. Locking alternative is padlock or cylinder lock. The doors are compatible with the Type P system and the UR SP panel system and can also be combined with our mesh panels systems.
Facts
| Art. Nr | Components | Height (mm) | Width (mm) | Mesh size (mm) | Frame (mm) |
|---|---|---|---|---|---|
| 35090171 | Door UR SP P 900 L | 2200 | 900 | Steel sheet | 19x19 |
| 35090161 | Door UR SP P 900 R | 2200 | 900 | Steel sheet | 19x19 |
| 35090331 | Door UR SP EC 900 L | 2200 | 900 | Steel sheet | 19x19 |
| 35090311 | Door UR SP AC 900 L | 2200 | 900 | Steel sheet | 19x19 |
| 35090321 | Door UR SP EC 900 R | 2200 | 900 | Steel sheet | 19x19 |
| 35090301 | Door UR SP AC 900 R | 2200 | 900 | Steel sheet | 19x19 |
Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized
