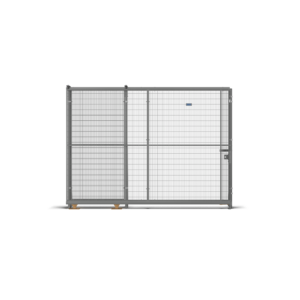

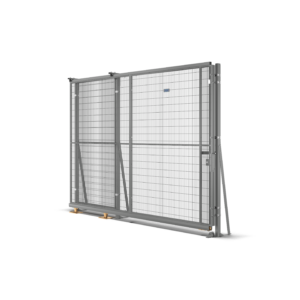

Linear Sliding Door
The linear sliding door can be built with our mesh and polycarbonate panels to fit your chosen machine guard system. Use the standard panel heights 2,050 mm or 1,250 mm in up to 6 widths. You can also combine the standard panels or order special width panels to create the required door blade size. The door is supplied as separate panels, posts, and door kit for assembly on site. The Linear sliding door runs on roller bearings at the top and bottom of the door panel, making it a very stable sliding door even for large door sizes. It creates a door opening with clear access in height, making it a good choice when you need access with forklifts for example. Depending on the risk assessment, you choose the preferred lock for your door. The Linear door can be equipped with the Troax Safe Lock which is compatible with many safety switches. The Linear sliding door is available in 5 widhts; 1,800 mm, 2,500 mm, 3,000 mm, 3,500 mm and 4,250 mm. The standard opening width is approximately 1,800-4,000 mm.
Facts
Art. Nr | Components |
---|---|
36906440 | Kit 6440 Guide Linear |
36906450 | Kit 6450 Guide Linear |
36906460 | Kit 6460 Reinforcement |
36906430 | Kit 6430 Linear |
Downloads
Name | Type | |
---|---|---|
Assembly instruction - Linear sliding door 60x40 MG 36906430.pdf |
Type
Document |
Download |
Product sheet - LINEAR_SLIDING_DOOR_ENG.pdf |
Type
Document |
Download |
Follow Me - Linear sliding door Kit Wire, 36906700.pdf |
Type
Document |
Download |
Assembly instruction - Linear sliding door 80x80 MG, 36906430.pdf |
Type
Document |
Download |
Assembly instruction - High Linear sliding door MG, 36906460.pdf |
Type
Document |
Download |
